Scenarios

Below are scenarios outlining the steps to create suppliers using V7 of the Standard API, and the steps to create New Classification Values.

More scenarios coming soon...

Scenario 1: Supplier Upsert

Step 1: Request a JSON Web Token (JWT)

1. Prepare a POST message to {BaseUrl}/sessions with the following JSON body:



Step 2: Prepare and send a Supplier Upsert Request

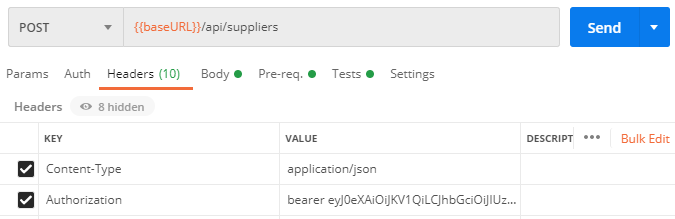

1. Prepare a POST message to {BaseUrl}/api/suppliers/ with the following headers:

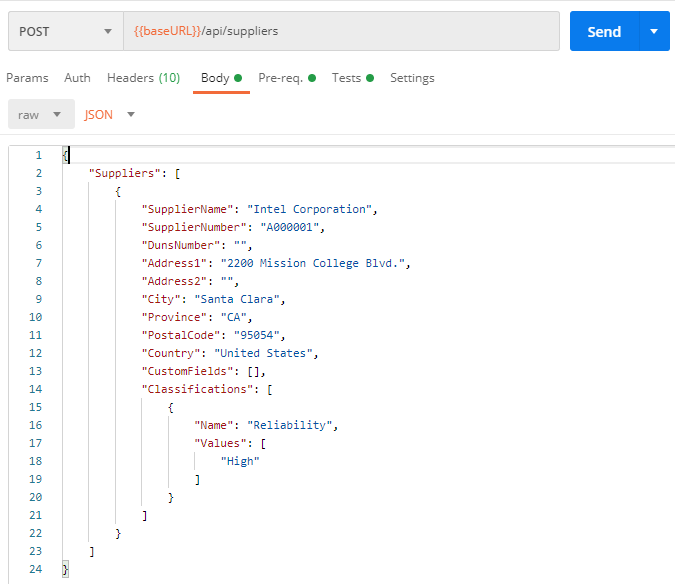

2. And with the following body:

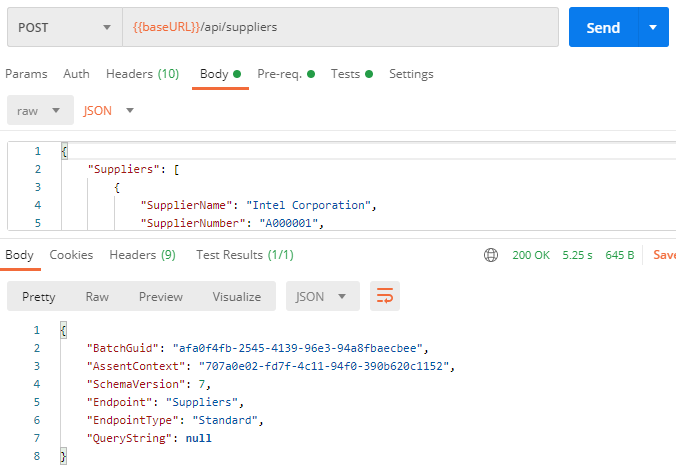

3. Expected Result

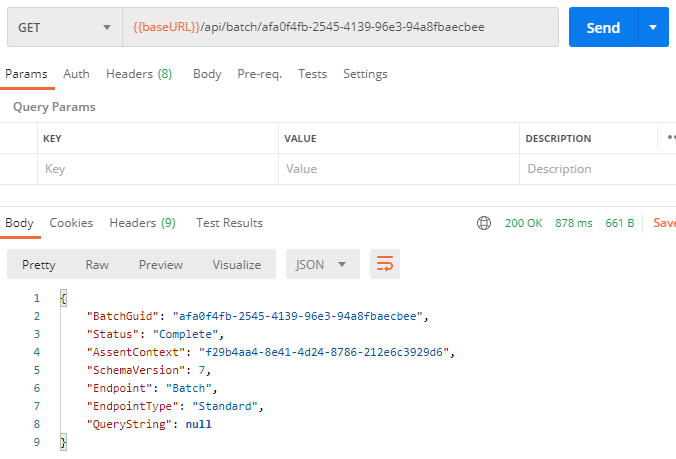

Step 3: Check the Batch Status

1. Using the BatchGuid returned in step 2, make a GET request to the {BaseUrl}/api/batch/ endpoint

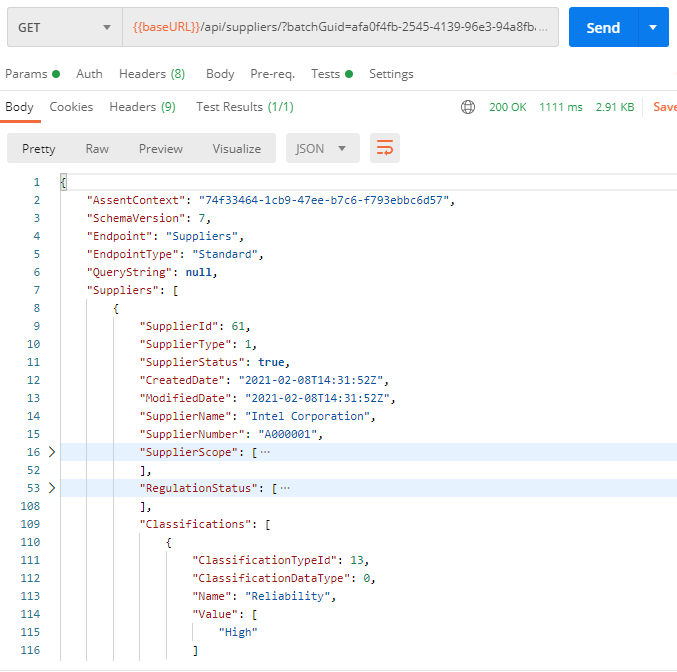

Step 4: Once complete you may retrieve the Suppliers inserted in the batch using the BatchGuid.

1. Using the BatchGuid returned in step 2, make a GET request to the {BaseUrl}/api/suppliers endpoint with the batchGuid as a query parameter.


Scenario 2: New Classification Value(s)

Step 0: Setup Classifications in ASM

1. The following steps are dependent upon the Classifications already existing within the ASM.

   Note that the Classification values can be multi-value (MV) or single-value (SV) of type 'string', 'decimal', or 'date', and they may be associated with any combination of Users, Parts, Sub-Assemblies, Suppliers, and/or Products

   Our example scenario will use a Part with an assortment of Classification values.

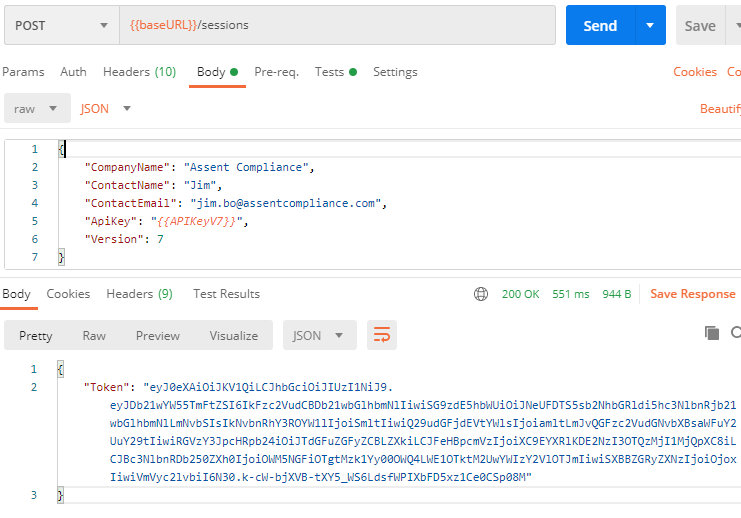

Step 1: Request a JSON Web Token (JWT)

1. Prepare a POST message to {BaseUrl}/sessions with the following JSON body:



Step 2: Prepare and send a Create Part Request with New Classification Values

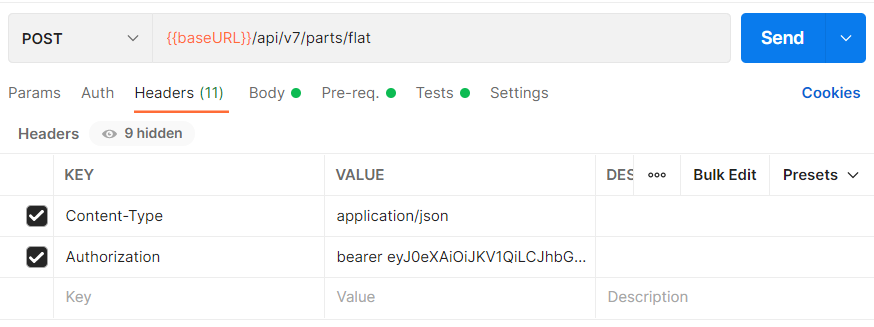

1. Prepare a POST message to {BaseUrl}/api/v7/parts/flat/ with the following headers:



2. And with the following body:

   {
   	"ModuleScopes": [],
   	"Parts": [
   		{
   			"PartNumber": "P000001",
   			"PartName": "Mainboard",
   			"SupplierNumber": "A000001",
   			"SupplierName": "Intel Corporation",
   			"SupplierPartNumber": "SupplierPartNumber_P000001",
   			"UnitOfMeasure": "EACH",
   			"UnitOfMeasureWeightInGrams": "100",
   			"CustomFields": [],
   			"Classifications": [
   				{
   					"Name": "Batch_Dates",
   					"Values": [
   						"2021-02-14",
   						"2021-03-10"
   					]
   				},
   				{
   					"Name": "Decimal_Statuses",
   					"Values": [
   						"-1",
   						"0",
   						"3",
   						"67"
   					]
   				},
   				{
   					"Name": "Alternative_Parts_Internal_ERP",
   					"Values": [
   						"P000001-112",
   						"P000001-113"
   					]
   				},
   				{
   					"Name": "Initial_Release_Date",
   					"Values": [
   						"2019-05-21"
   					]
   				},
   				{
   					"Name": "Custom_Single_Decimal",
   					"Values": [
   						"147855"
   					]
   				},
   				{
   					"Name": "Extended_Description",
   					"Values": [
   						"This mainboard product is used in various subassemblies and products including...."
   					]
   				}
   			]
   		}
   	]
   }

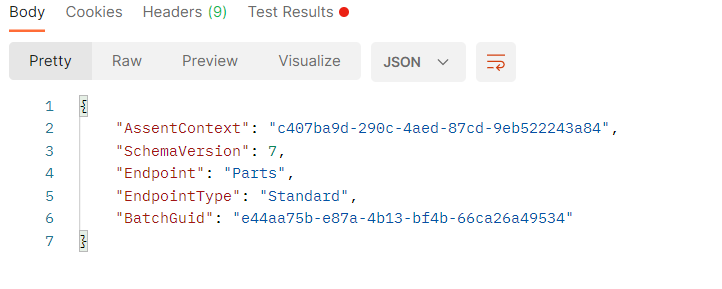

3. Expected Result

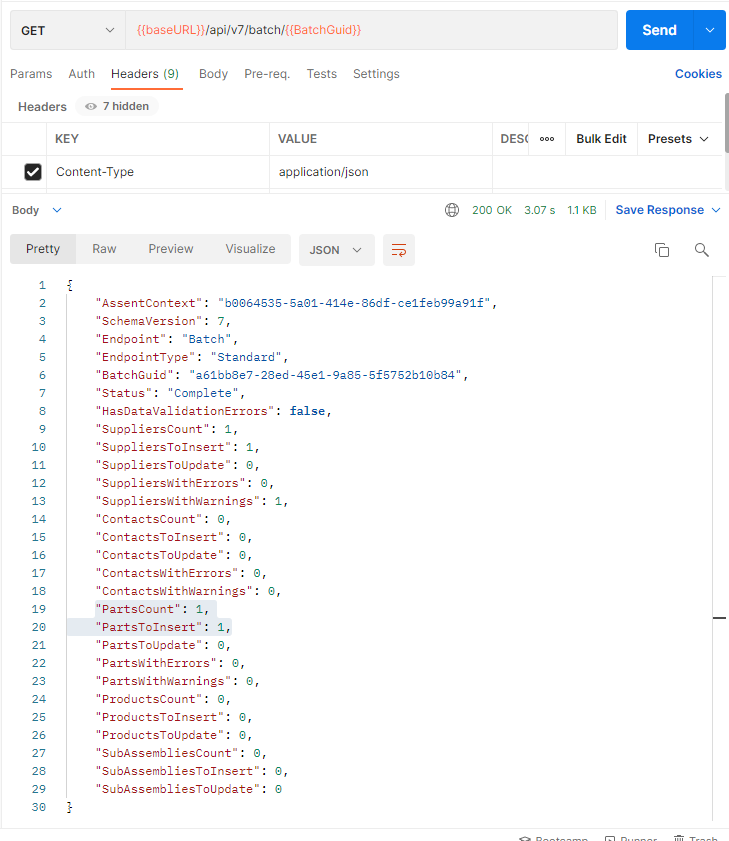

Step 3: Check the Batch Status

1. Using the BatchGuid returned in step 2, make a GET request to the {BaseUrl}/api/batch/ endpoint


Step 4: Once complete you may retrieve the Part inserted in the batch using the BatchGuid.

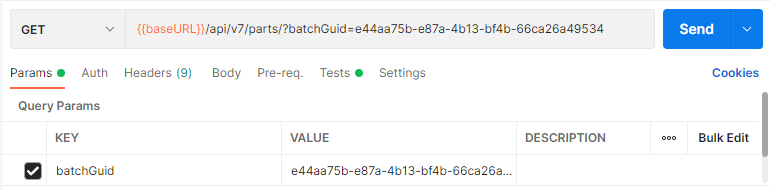

1. Using the BatchGuid returned in step 2, make a GET request to the {BaseUrl}/api/v7/parts endpoint with the batchGuid as a query parameter.


   With this Body returned:

   {
       "AssentContext": "3363b231-b487-49b0-9478-02db828dd268",
       "SchemaVersion": 7,
       "Endpoint": "Parts",
       "EndpointType": "Standard",
       "QueryString": "?batchGuid=e44aa75b-e87a-4b13-bf4b-66ca26a49534",
       "Total": 1,
       "Count": 1,
       "NextOffset": 1,
       "MoreAvailable": false,
       "Parts": [
           {
               "PartName": "Mainboard",
               "PartNumber": "P000001",
               "PartRole": "Part",
               "SupplierPartId": 37229,
               "SupplierPartNumber": "SupplierPartNumber_P000001",
               "UnitOfMeasure": "EACH",
               "UnitOfMeasureWeightInGrams": 100.0000000000,
               "PartStatus": true,
               "SupplierId": 2235,
               "SupplierName": "Intel Corporation",
               "SupplierNumber": "A000001",
               "CreatedDate": "2021-10-04T11:21:30Z",
               "ModifiedDate": "2021-10-04T11:21:30Z",
               "Classifications": [
                   {
                       "Name": "Alternative_Parts_Internal_ERP",
                       "Values": [
                           "P000001-112",
                           "P000001-113"
                       ]
                   },
                   {
                       "Name": "Batch_Dates",
                       "Values": [
                           "2021-02-14",
                           "2021-03-10"
                       ]
                   },
                   {
                       "Name": "Custom_Single_Decimal",
                       "Values": [
                           "147855.00000"
                       ]
                   },
                   {
                       "Name": "Decimal_Statuses",
                       "Values": [
                           "0.00000",
                           "-1.00000",
                           "3.00000",
                           "67.00000"
                       ]
                   },
                   {
                       "Name": "Extended_Description",
                       "Values": [
                           "This mainboard product is used in various subassemblies and products including...."
                       ]
                   },
                   {
                       "Name": "Initial_Release_Date",
                       "Values": [
                           "2019-05-21"
                       ]
                   }
               ],
               "CustomFields": [],
               "PartScope": [...trimmed for brevity...],
               "RegulationStatus": [...trimmed for brevity...]
           }
       ]
   }
